18 Litre Industrial Ultrasonic Cleaner
18 Litre Industrial Ultrasonic Cleaner
Tank size 320mm long x 250mm wide x 230mm deep
Overall size 450L x 380W x 450H
The basket is approximately 10 mm smaller than the tank all around
Ultrasonic power 360 W @ 40Khz
800 W water heater
Timer range 0-30 Minutes

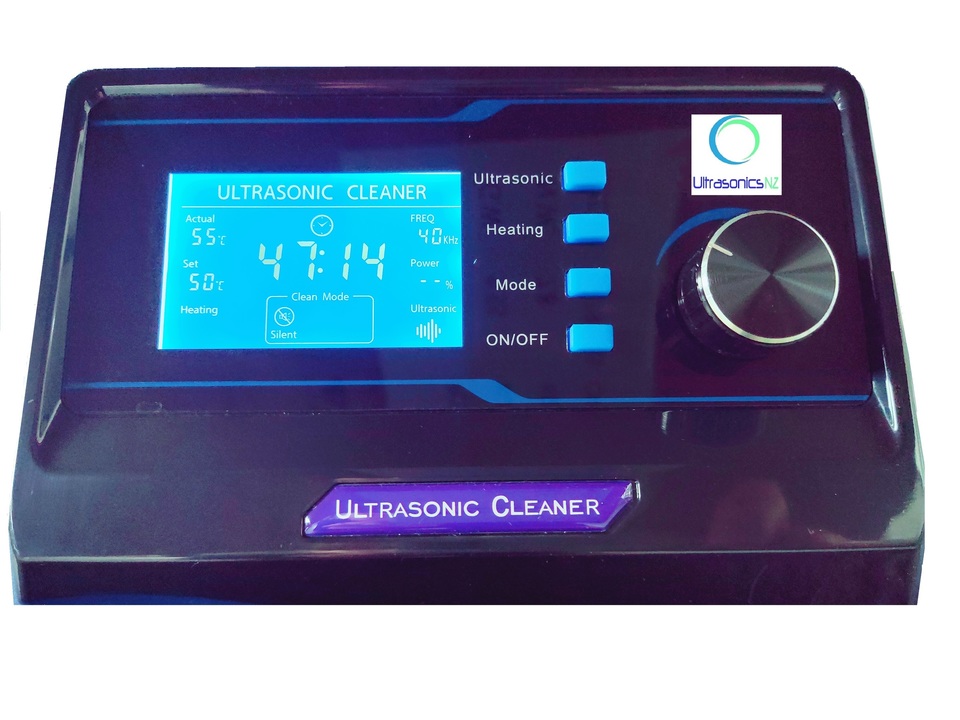

FULL DIGITAL CONTROL
Degas function
Adjustable transducer power output 30%-100%
Timer range 0-99 Minutes
Heating range 0-100 Degrees C

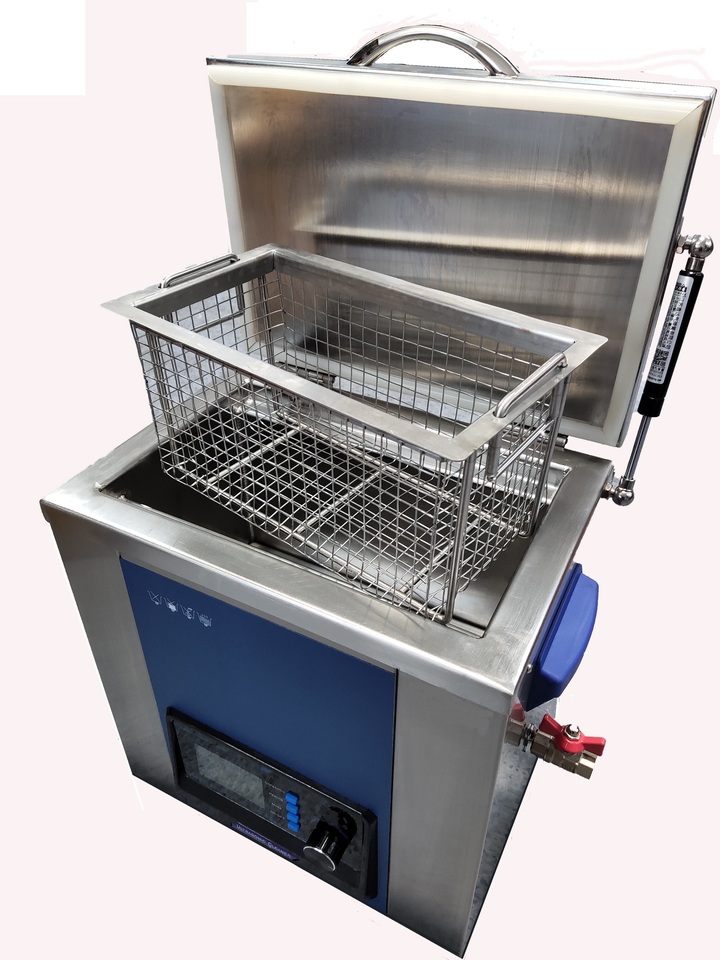

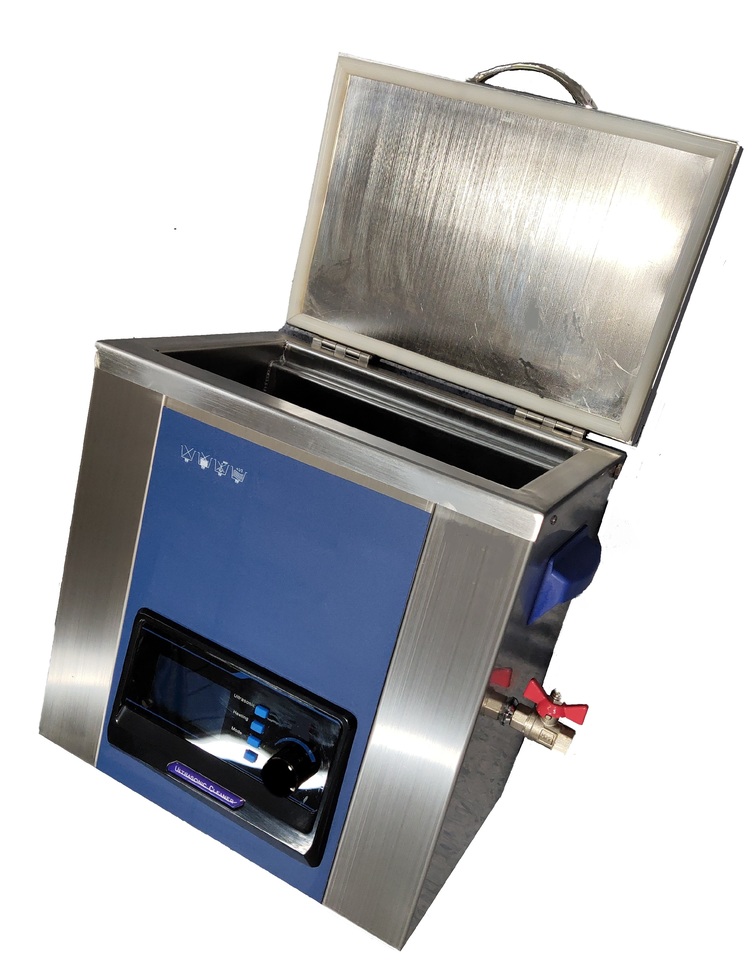

Comes complete with stainless basket , hinged insulated lid and drain tap
Information
OPERATION INSTRUCTIONS
1 : SIT ULTRASONIC CLEANER ON A FLAT SURFACE
2 : FILL TANK TO ¾ FULL ( AND KEEP THE WATER AT THIS LEVEL )Always unplug when filling with water
3 : ADD THE DETERGENT
4 : CONNECT POWER TO THE MACHINE , PRESS THE ON/OFF BUTTON , THE LCD SCREEN WILL LIGHT
5 : PRESS THE KNOB , TURN THE KNOB TO SET THE REQUIRED CLEANING TIME (1 to 99 minutes)
6 : PRESS THE KNOB , TURN THE KNOB TO THE REQUIRED POWER SETTING ( 30 % - 100 %)
7 : PRESS THE KNOB , TURN THE KNOB TO SET THE REQUIRED TEMPERATURE ( 0-100 Celsius ) (RECOMMENDED TEMPERATURE IS 50-60 Celsius )
8 : PRESS THE KNOB AGAIN TO RETURN TO THE MAIN SCREEN
9 : PRESS THE MODE BUTTON ( SET TO SILENT , STANDARD or DEGAS as required )
10 : PRESS THE HEATINH BUTTON , THE INDICATOR WILL LIGHT INDICATING THE WATER IS HEATING
11 : PRESS THE ULTRASONIC BUTTON , THE INDICATOR WILL LIGHT AND THE ULTRASONIC FUNCTION WILL START ,THE ULTRASONIC FUNCTION WILL STOP ONCE THE ( “set” )CLEANING TIMER HAS FINISHED
WARNING
DO NOT OPERATE IF THE TANK IS LOW ON WATER
DO NOT USE FLAMMABLE LIQUID IN THE TANK
DO NOT USE HI ALKALINE OR ACIDIC FLUID
KEEP HANDS OUT OF TANK WHILE IT IS WORKING
